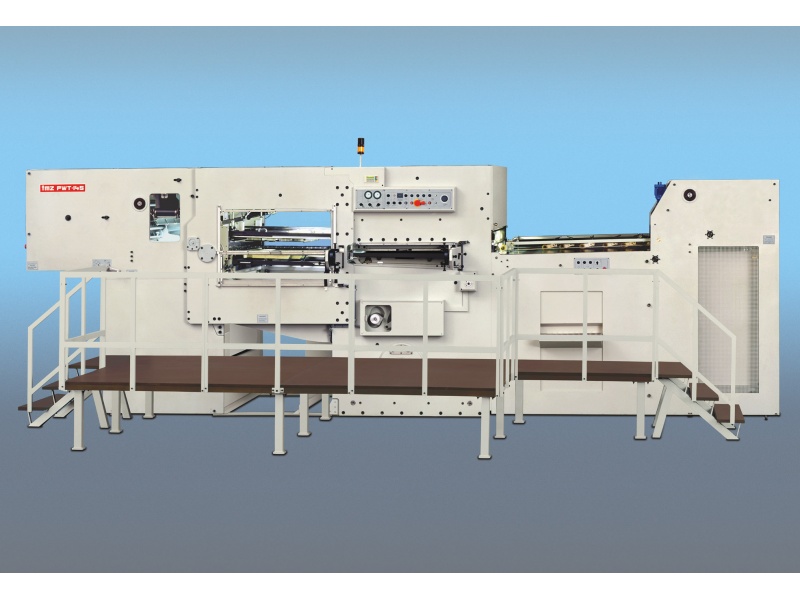

Automatic Diecutter TMZ PWT-145
Automatic feed system for working with paper, carton board, microflute and laminated materials. Table for the accurate front and side register on both sides. Double-sheet detector with device for emergency stop. Double action stripping section, likewise it is provided with gripper margin removal.
Technical Information
| Maximum sheet format | 105x145 | cm |
| Minimum sheet format | 45x52 | cm |
| Min. thickness | 250 | gr/m2 |
| Max. thickness | 2.000 | gr/m2 |
| Max. thickness corrugated | 3 | mm |
| Production per hour | 6.300 | g/h |
| Total maximum pressure | 390 | Tm |
| Approximate length | 720 | cm |
| Approximate width | 430 | cm |
| Approximate height | 255 | cm |
| Approximate net weight | 22 | Tm |
Options :
Heating plate, ionizer, tab inserter, non-stop at feeder, non-stop at delivery, extra height pile, Off-press chase make-ready table...Photo Gallery
