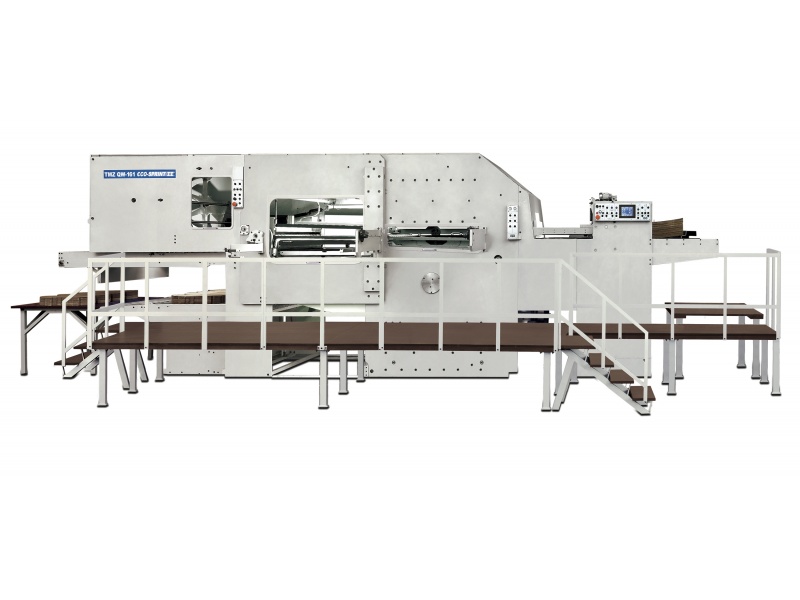

Automatic Diecutter TMZ QW-161 €CO-SPRINT II
Feeding of the sheet at the bottom by means of a vacuum box with conveyor wheels. Active side and front register sheet by sheet. Electronic pressure adjustment Centering system which accurately positions the die tool. Double action stripping unit. Delivery of pre-counted packs accurately piled so that the customer can place a breaker unit.
Technical Information
| Maximum sheet format | 111x161 | cm |
| Minimum sheet format | 45x56 | cm |
| Max. thickness corrugated | 7/8 | mm |
| Min. thickness corrugated | 1 | mm |
| Production per hour | 6.100 | g/h |
| Total maximum pressure | 390 | Tm |
| Approximate length | 717 | cm |
| Approximate width | 450 | cm |
| Approximate height | 255 | cm |
| Approximate net weight | 32 | Tm |
Options :
Post-piling of stacks at delivery, Off-press chase make-ready table ...Photo Gallery
