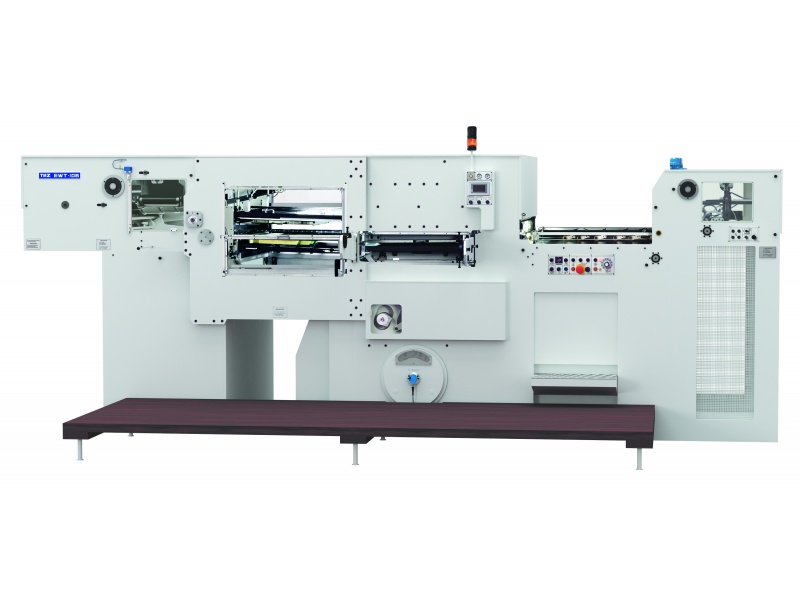

Automatic Diecutter TMZ EWT-106
Automatic feed system for working with paper, carton board, microflute and laminated materials. Table for the accurate front and side register on both sides. Double-sheet detector with device for emergency stop. Double action stripping section, likewise it is provided with gripper margin removal.
VIDEO: www.youtube.com/watch
Technical Information
| Maximum sheet format | 76x106 | cm |
| Minimum sheet format | 45x38 | cm |
| Min. thickness | 100 | gr/m2 |
| Max. thickness | 2.000 | gr/m2 |
| Max. thickness corrugated | 3 | mm |
| Production per hour | 7.500 | g/h |
| Total maximum pressure | 300 | Tm |
| Approximate length | 570 | cm |
| Approximate width | 230 | cm |
| Approximate height | 208 | cm |
| Approximate net weight | 13.5 | Tm |
Options :
Heating plate, ionizer, tab inserter, non-stop at delivery…
