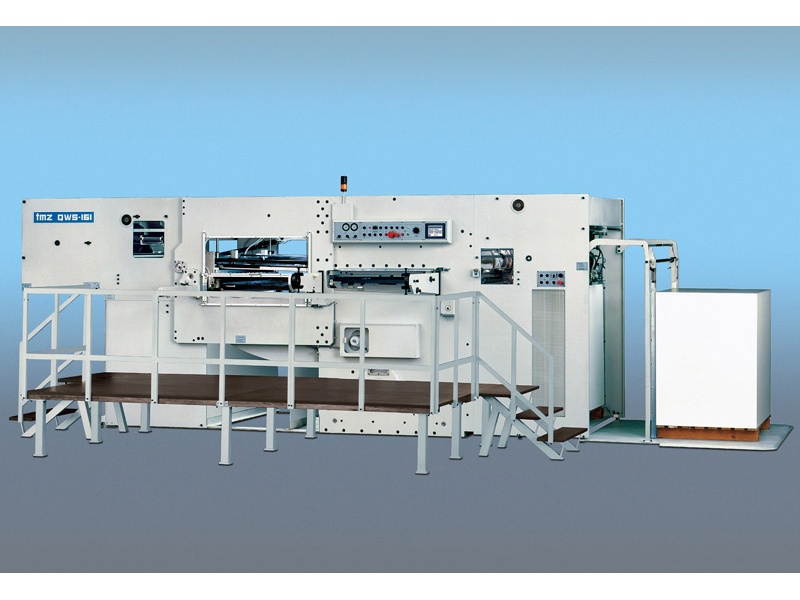

Automatic Diecutter TMZ QWS-161
Automatic feed system for working with carton board, micro and corrugated. Equipped with an in-line feeding and delivery system using pallets. Double action stripping station, likewise it is provided with gripper margin removal. Quick and easy adjustment.
Technical Information
| Maximum sheet format | 111x161 | cm |
| Minimum sheet format | 45x50 | cm |
| Min. thickness | 300 | gr/m2 |
| Max. thickness | 2.000 | gr/m2 |
| Max. thickness corrugated | 6 | mm |
| Production per hour | 6.100 | g/h |
| Total maximum pressure | 390 | Tm |
| Approximate length | 670 | cm |
| Approximate width | 550 | cm |
| Approximate height | 255 | cm |
| Approximate net weight | 31 | Tm |
Options :
Heating plate, ionizer, tab inserter, extra height pile, Off-press chase make-ready table.Photo Gallery
