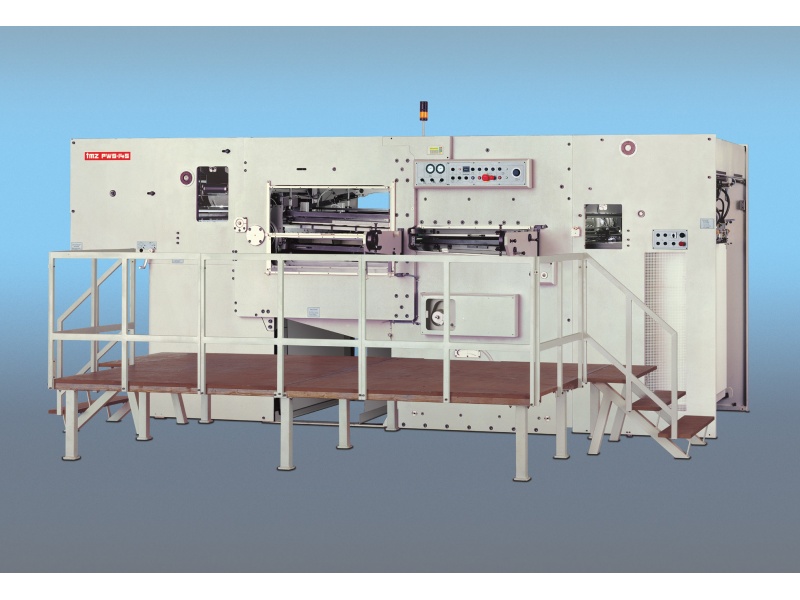

Automatic Diecutter TMZ PWS-145

Automatic feed system for working with carton board, micro and corrugated. Equipped with an in-line feeding and delivery system using pallets. Double action stripping station, likewise it is provided with gripper margin removal. Quick and easy adjustment.

Technical Information

Maximum sheet format	105x145	cm
Minimum sheet format	45x56	cm
Max. thickness corrugated	7/8	mm
Production per hour	6.300	g/h
Total maximum pressure	390	Tm
Approximate length	570	cm
Approximate width	430	cm
Approximate height	255	cm
Approximate net weight	20	Tm

Options :

Heating plate, ionizer, tab inserter, non-stop at delivery, extra height pile, Off-press chase make-ready table.

Photo Gallery
